High-Frequency Clear Image Low Radiation Portable X Ray

Short Description:

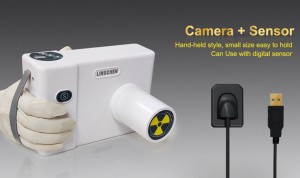

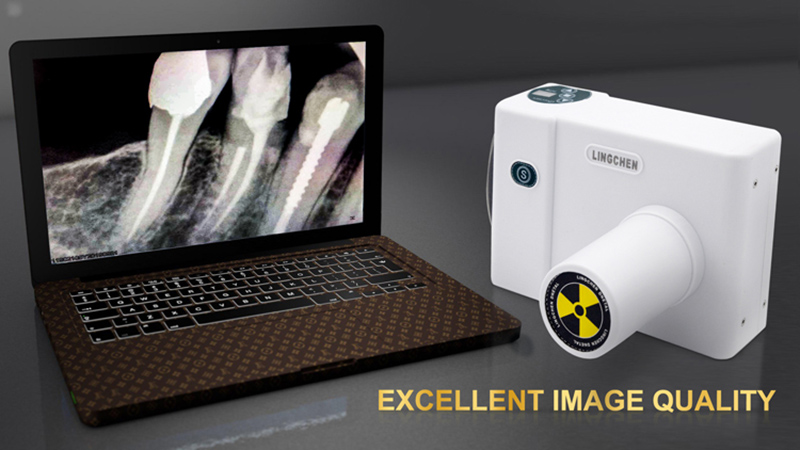

Portable x-ray specifically designed for Dentists. Features include; Battery-power, Handheld SLR-sized camera, ease of angle, Low radiation for protection of you and your patients, USB sensor, or traditional x-ray film. Produces excellent high-resolution images, catches tooth root problems missed by other machines. Stable x-ray radiation output, shortened exposure time with high-frequency inverter technology. Easy battery replacement.


Product Detail

Product Tags

number (9)

Advantages:

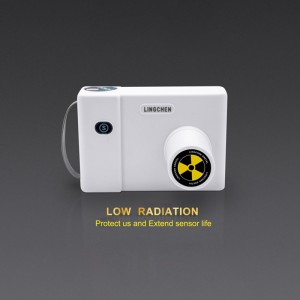

DC battery operation, functional low radiation to protect your patients and extend sensor life;
65KV, clear images;
AA Battery for ease of replacement;
Easy grip handle, small and simple to manipulate.

q15
ysci1

Exposure Time:

1. Choose between Child and Adult settings that correspond size and location to exposure time and angle.

2. Reference tooth to exposure time. (Referential value)

    Tooth position

Time(S)

Back

Middle

Front

Adult

Upper

Tooth

1.5

1.1

0.7

Lower

Tooth

1.3

1

0.7

Child

Upper

Tooth

0.8

0.6

0.5

Lower

Tooth

0.6

0.5

0.4

Note: When working with x-ray sensor as opposed to x-ray film decrease exposure by 50%.

Upper teeth

8 7 6 5 4 3 2 1

1 2 3 4 5 6 7 8

Lower teeth

8 7 6 5 4 3 2 1

1 2 3 4 5 6 7 8

yaci2

Technical parameters:

supply voltage 100240 VAC
Frequency 50-60Hz
Power 100 W
Exposure time 0.2-6 s
X- ray tube high voltage 65KV
X- ray tube current 1mA
Filament frequency 55 KHz
Excitation voltage frequency 35 KHz
Leakage radiation < 10 uGy/h
Total filtration 2.3mmAl.
Focus to skin distance 100mm +10mm
Limit diameter 45mm + 5mm
Weight 1.6kg
Volume 17x13x12 cm

Warning: Exposure infants and pregnant women should be performed with caution.

You are welcome to visit our YouTube page for Portable x-ray Machines for additional information:

https://www.youtube.com/watch?v=PZgupD9LiCY&t=109s
