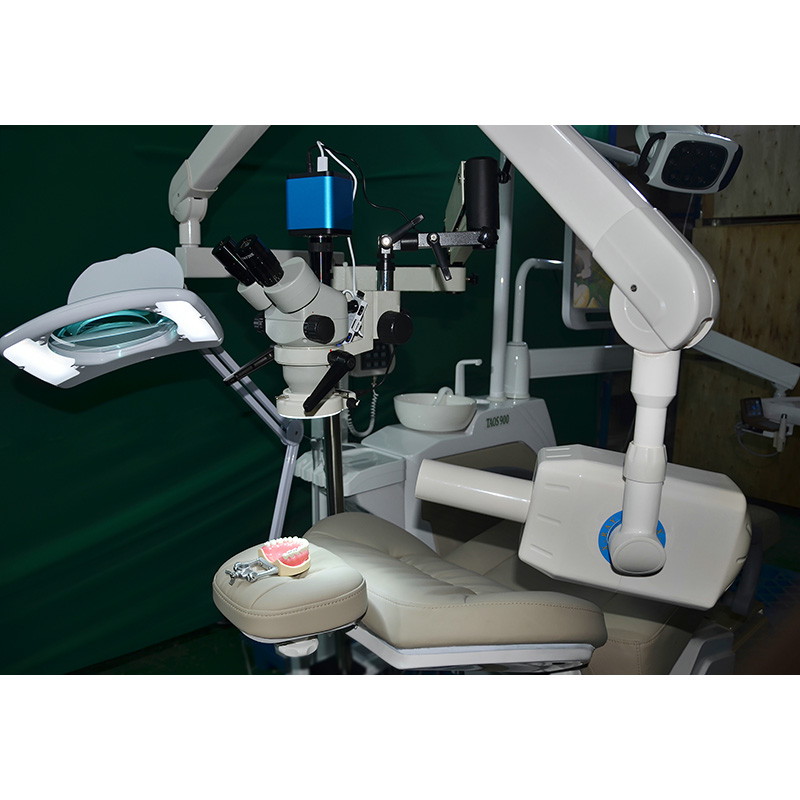

Dental Chair Central Clinic Unit With Microscope X-Ray

Short Description:

Usage: Surgery, RCT, Implant, Education A imaginative design- Saving time and money. Microscope and X-ray systems are integrated into the dental unit’s body for more comfortable and efficient treatments. Providing a large operating space, which is needed for all outpatient operations and treatments.

Product Detail

Product Tags

Development Background of Center Clinical Unit Taos900c
1-As dental treatments have advanced patients are demanding a higher quality experience while in the dental chair and a higher commitment to care.
2-All dental treatments can be done in one location taking less space and not requiring moving the patient which increases the efficiency.
3-An All-in-one treatment center makes the unit more cost-effective and affordable allowing you to get a lot done with a single station.

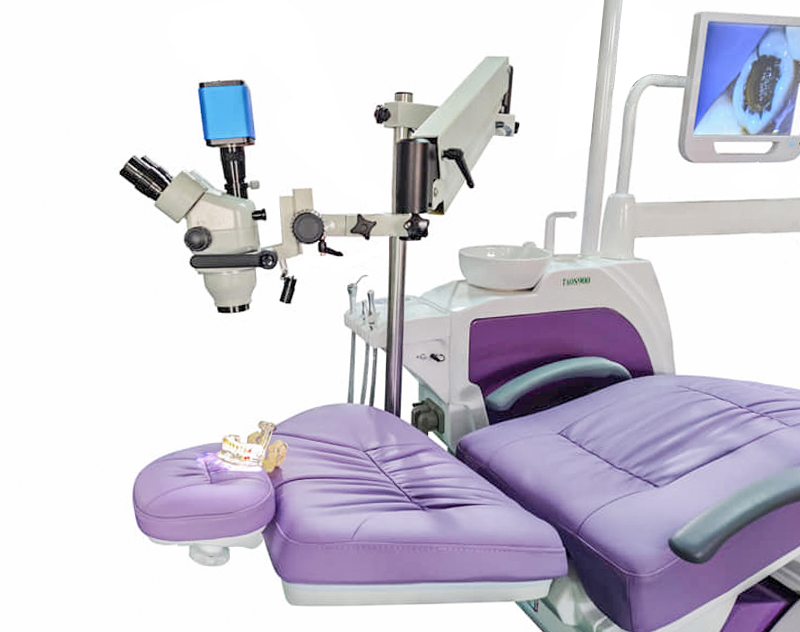

Microscope II with Autofocus. This device improves The dentist’s efficiency which in turn increases the performance of the clinic; 25 cm working distance, 5 different magnification levels, the greatest being  50 X.

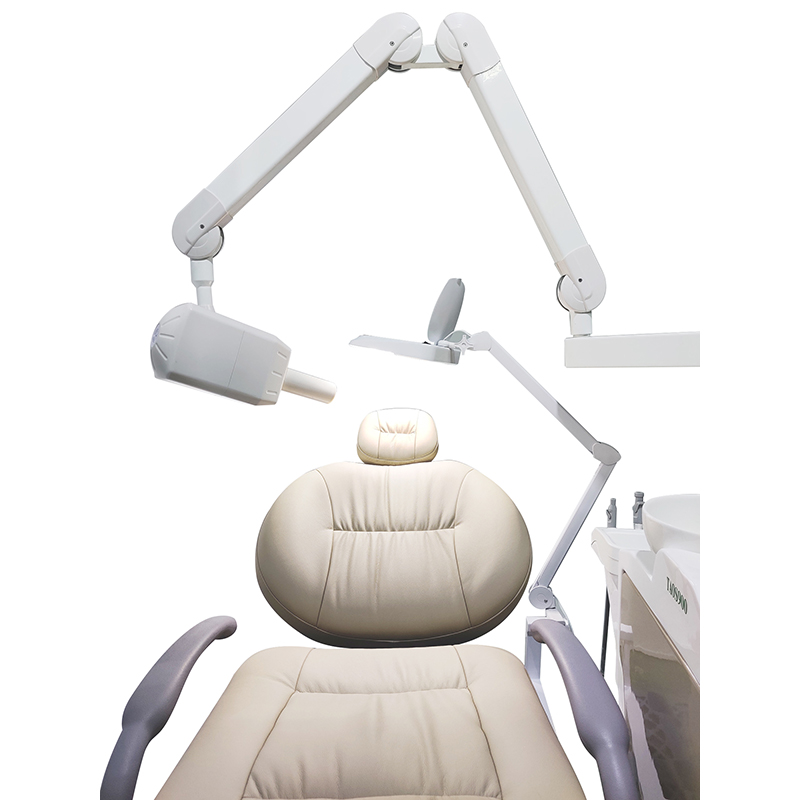

X- ray: Long enough to reach the Left or Right side of  Patient;  60/ 65/ 70KV choices for optimal imaging.

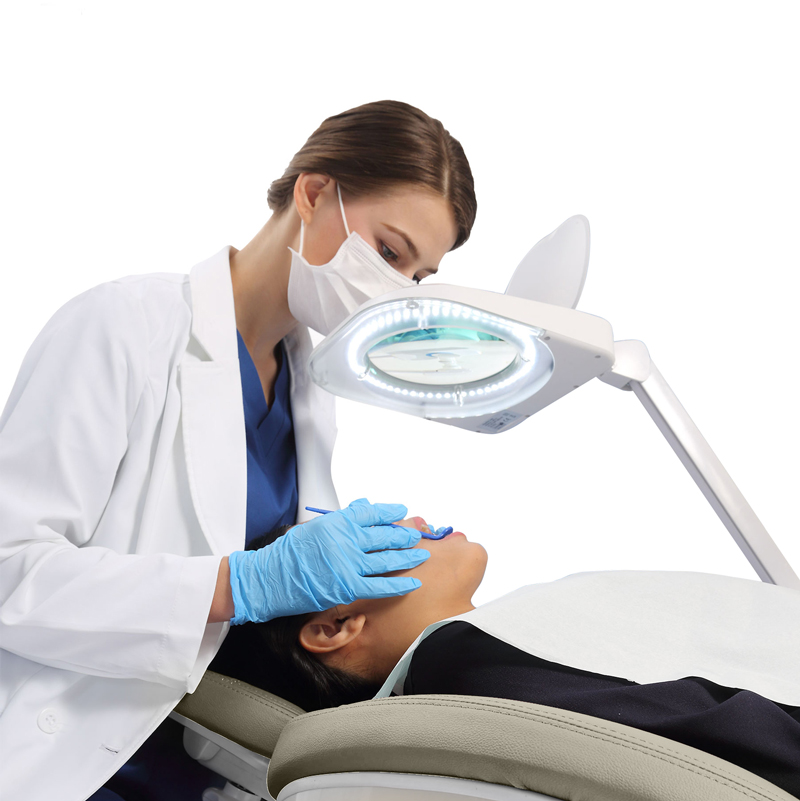

Chair loupe: 3.5X magnification, with LED light for unparalleled detail and accuracy.

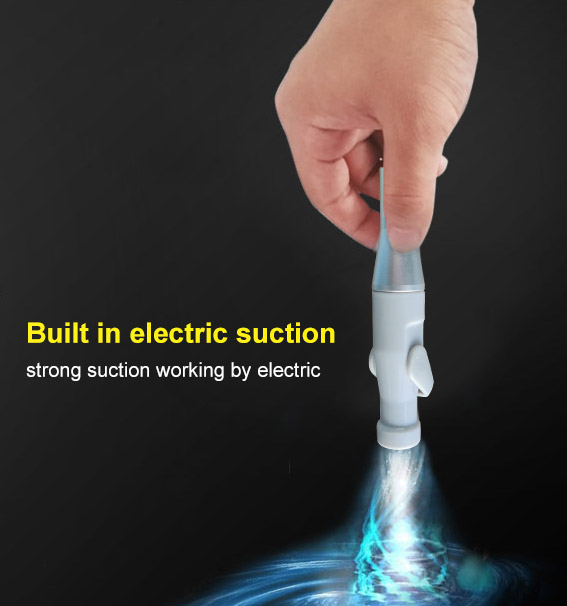

Built in electric suction-working by electric. Suction work smoothly and powerful, enough for surgery working, and it is drainage style, no need for the assistant to change the bottle.

 While built in electric suction working, patient feel comfortable because it will not suck the meat, which is different with traditional vacuum pump.


WIFI foot pedal:

Which is Wireless foot pedal, the dentist can use his left leg or the right leg both, make the work more relax and easier. The wifi signal working within 25 M, without cable limitation, will be easier for cleaning.  Pls charge the foot pedal while the power low.

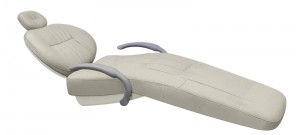

The Dental Unit comes with long cushion- 2.2 M, microfiber leather, max loading 180kg,  while one-piece quilted upholstery feels remarkably plush (sewn upholstery) for the strong and tall patients to receive long treatments.

Whole body patient support is more suitable for the elderly, pregnant women and other patients with limited mobility to receive long treatments.

Optimized Workings Space - Each calculated distance in the design of the Dental Chair is a precision measurement to maintain comfort and ergonomics.

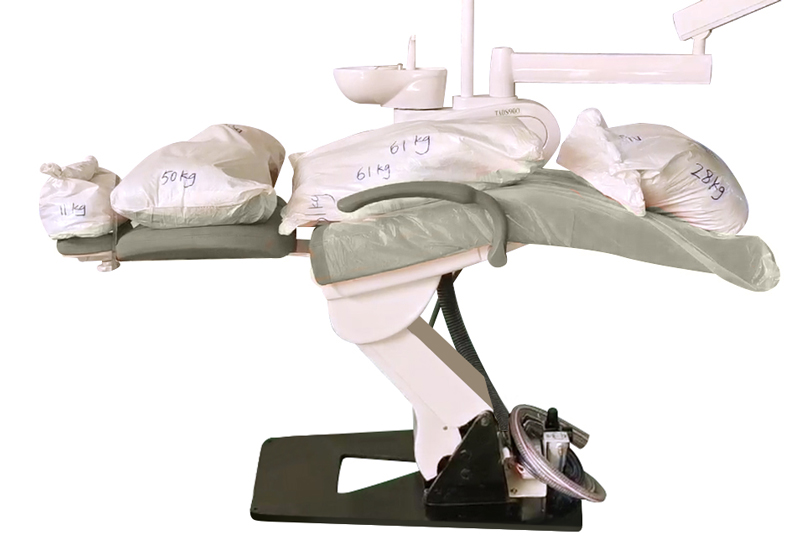

Metal Frame- Our patented dental chair's weight capacity is 180 kg due to the use of a thick dense steel frame. Metal frame is the heart of dental unit for its stability, if the metal frame is weak, the dental unit will start to shake after using few years.


Our dental chair motors are designed to operate quietly with gentle starts and stops for a more comfortable patient positioning experience.

Filter Operation LED lamp with a Built-in Camera.
To avoid direct sharp blinding light in patients' and dentists' eyes, and in general to make a more comfortable experience for patients and dentists, we have designed our filtered operation LED Lamp delivering focused and peaceful light for everyone. And to top it off our Built-in camera gives a better overall view during treatment.

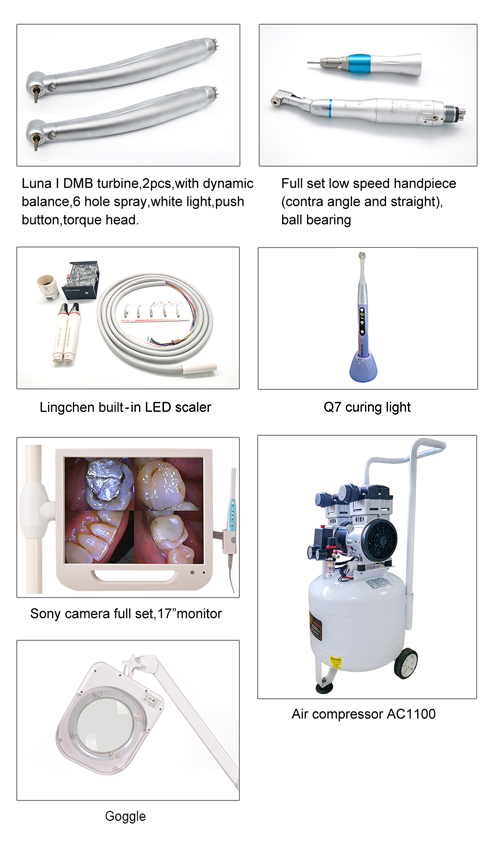

Air Compressor, built- in LED scaler, oral camera with screen, curing light, dental handpieces.

Rated Voltage AC220V- 230V/ AC 110-120V, 50Hz/ 60Hz
Water pressure 2.0- 4.0 bar
Water Flow ≧ 10L/ min
Air Consumption Dry & Wet Suction ≧ 55L/ min (5.5- 8.0bar)
Water Consumption Air Negative Pressure ≧ 55L/ min
Patient Chair Carry Capacity 180KG
Base height range Low point: 343mm Hight point 800mm
Headrest Dual- articulating gliding headrest; lever release
Input Power  1100VA
Chair control Delivery system touchpad or foot switch
Upholstery options Microfiber leather or PU
