Multipurpose Dental Surgical Microscope III With Video Recording Function

Short Description:

Overview: Dental Microscope with a micro-fine foot pedal control.

Dental Microscope aids in:
1. locating hidden and accessory canals.
2. Locating and removing separated instruments.
3. Preserving tooth structure.
4. Improving ergonomics and efficiency of clinicians.


Product Detail

Product Tags

number (9)

Improve the dentist’s work & increase the reputation of clinic.

xq3
number (7)

25cm working distance, perfect for dentist's working; with 5 levels changer of  magnification, biggest one 20.4X; with fiber optic light.

number (3)

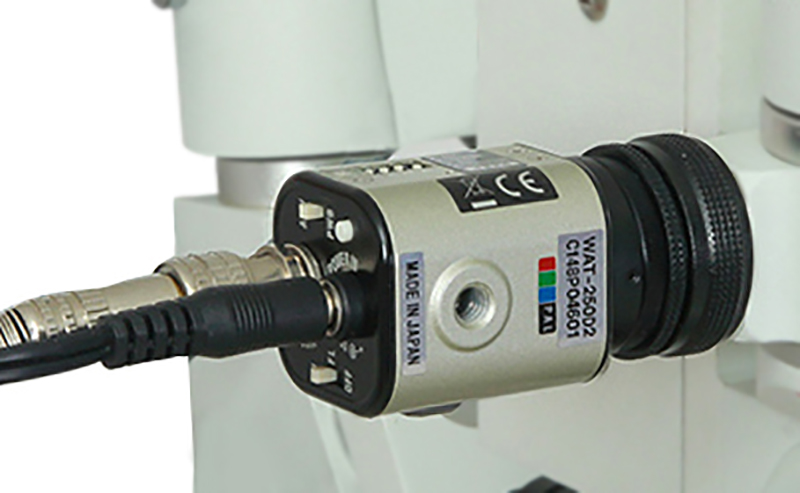

CCD camera, with High-contrast image, great depth of field and excellent stereo effect, supporting to get clear image or video.

number (2)

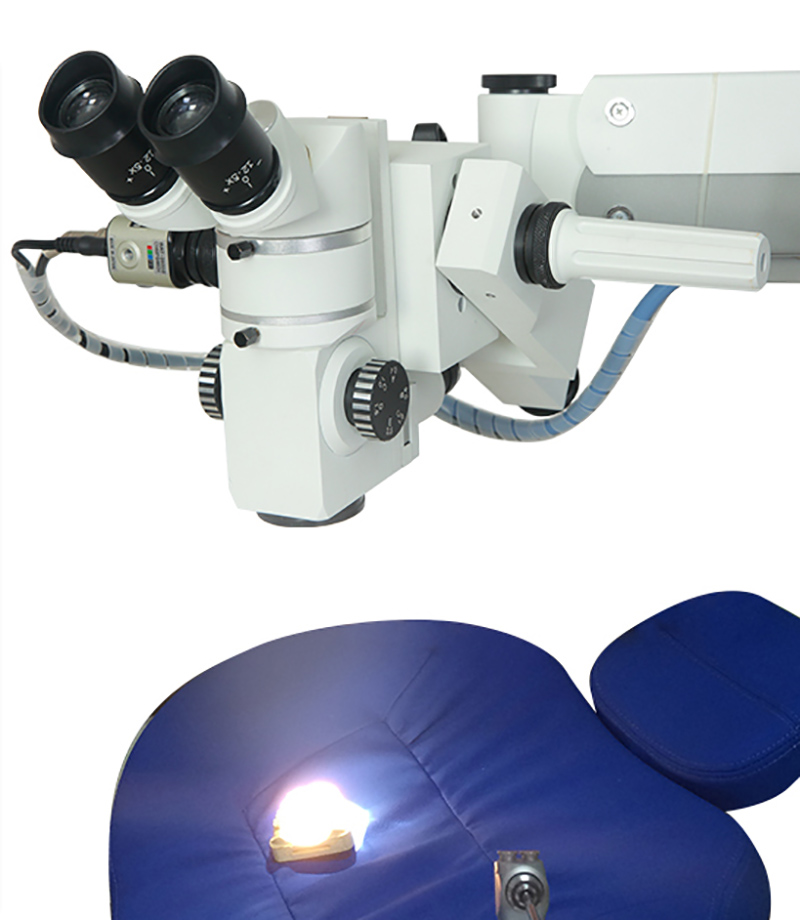

Fiber optic light with three level-bright enough, every corner in mouth full of  light.

number (1)

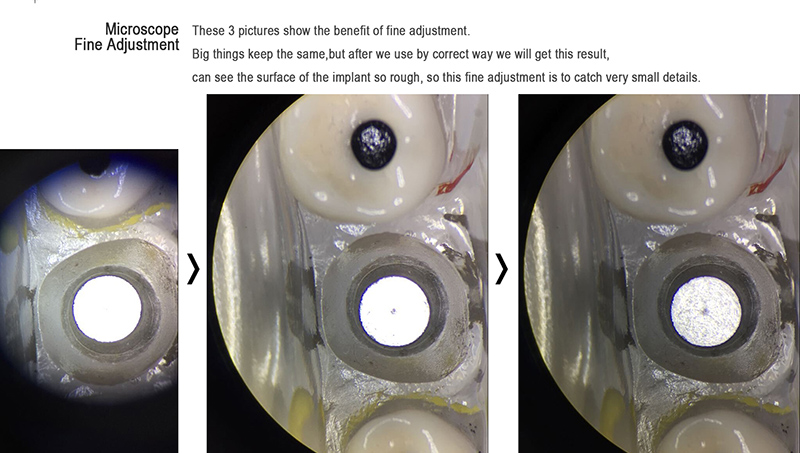

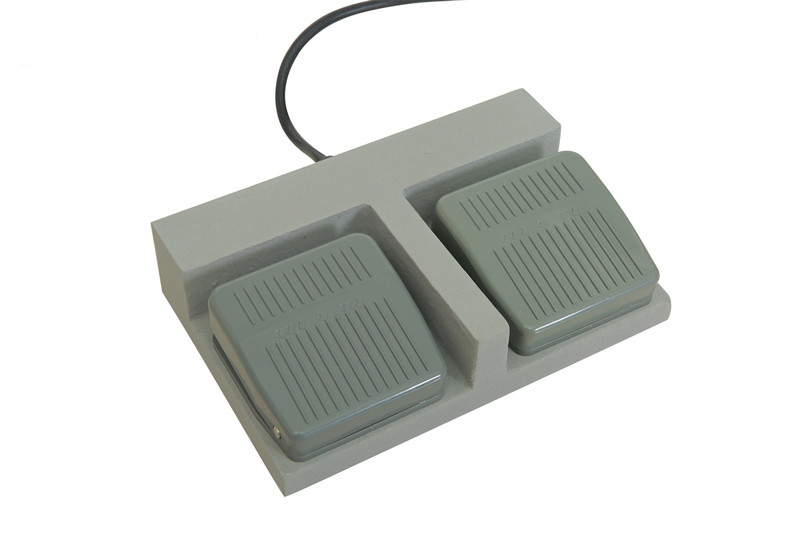

Micro- fine adjusted by electric foot pedal to control up and down, to release the assistant job while release the dentist's hands, and help dentist's reach to final image within seconds.

number (4)
number (5)

Dental Microscope Specification

Model Basic specifications
Okyective lens (mm)
Value on wheel items 175( with f'=125mm binocular) 200 250 300 400
Version III Series 0.4 magnification 3.6 4.2 3.4 2.8 2.1
Visual field 56 53 66 80 106
0.6 magnification 5.4 6.2 4.9 4.1 3.1
Visual field   35 44 53 70
1 magnification 8.9 10.4 8.3 6.9 5.2
Visual field   20.7 25.8 31 41.4
1.6 magnification 14.2 17.4 13.9 11.6 8.7
Visual field   12.3 15.4 18.5 24.6
2.5 magnification 22.3 25.5 20.4 17 12.7
Visual field 9 8.3 10.4 12.5 16.6
ysci1

Dental microsocpe benefit for dentist's working:

xq8
xq7
xq6
xq5
yaci2

Portable style and Built-in dental chair style available

xq11
xq9
