Cutting Table & Wall Mounted Dental Sealing Machine

Short Description:

Wall-mounted & desktop dental sealing machines, space-saver for your clinic.
An Itailian heating bar never burns a roll.
Cuts Flawlessly.
Hidden blade, safe and reliable.
Energy-saving,70% saving over standard heating bars.


Product Detail

Product Tags

number (9)

Good cutting dental sealing machine

xq1
number (7)

over view: Table & wall mounted dental sealing machine

number (3)

Eight advantages of dental sealing machine

1. Wall- mounted & desktop dental sealing machine,save space for dental clinic.

2. Italy Imported Heating bar,never burn the roll.

3. Cut more easy.

4. Hidden blade,safe and reliable.

5. Engergy saving,70% saving more than usual heating bar.

6. Press width is 12mm more reliable.

7. Imported PPS raw material anti- temperature and aging.

8. Energy saving, 70% saving more than usual heating bar.

sv_ico_02_hover

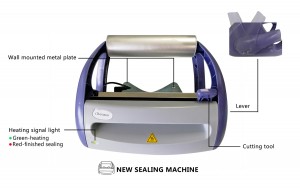

Instruments
State of  Led Indication Recommended action
Steady green light Apparatus ready for use Use apparatus
Green flashing light Heating underway Wait till heating ends
Green light flashing with reduced frequency ECO-mode(energy saving) Return to normal functioning by operating lever 09 for a moment, otherwise switch apparatus off
Steady red light Sealing over(where bar has been closed for 3 seconds);sealing bar not suffciently hot(where bar have only just been closed) Re-open sealing bar by raising lever 09
Red flashing light Sealing bar broken  Subsitute the sealing bar
Lever
Lever 09 allows the sealing bar to close.
Cutting tool
The cutting tool 10 allows the packets to be cut once heat- sealed
ON/ OFF switch
The ON/ OFF switch 05 allows the apparatus switched ON/ OFF
ysci1
Technical specification table
Packet tray 04 Optional
Electrical supply  voltage and frequency  Volt230-Hz50/60V-Hz
Power 100W
Length of seal 250mm
Width of seal 10mm
Heating Monolateral
Start-up Manual
Weight  7KG
Dimensions:
Width  445mm
Height 205mm
Depth 325mm
Packing dimensions
Width  515mm
Height 330mm
Depth 390mm
yaci2
INSTRUMENTS
Led
State of tod 06 Indication Recommended action
Steady green light Apparatus ready for use Use apparatus
Green flashing light Heating underway Wait till heating ends
Green light flashing with       reduced frequency ECO-mode(energy saving) Return to normal functioning by operating lever 09 for a moment,otherwise switch apparatus off
Steady red light Sealing over(where bar has been dosed for 3 seconds); sealing bar not suffdently hot(where bar have only just been closed) Re-open sealing bar by raising lever 09
Red flashing light Sealing bar broken Substitute the sealing bar
Lever Lever 09 allows the sealing bar to dose.
Cutting tool The cutting tool 10 allows the packets to be cut once heat-sealed.
ON/OFF switch
The ON/OFF switch 05 allows the apparatus switched ON/OFF
