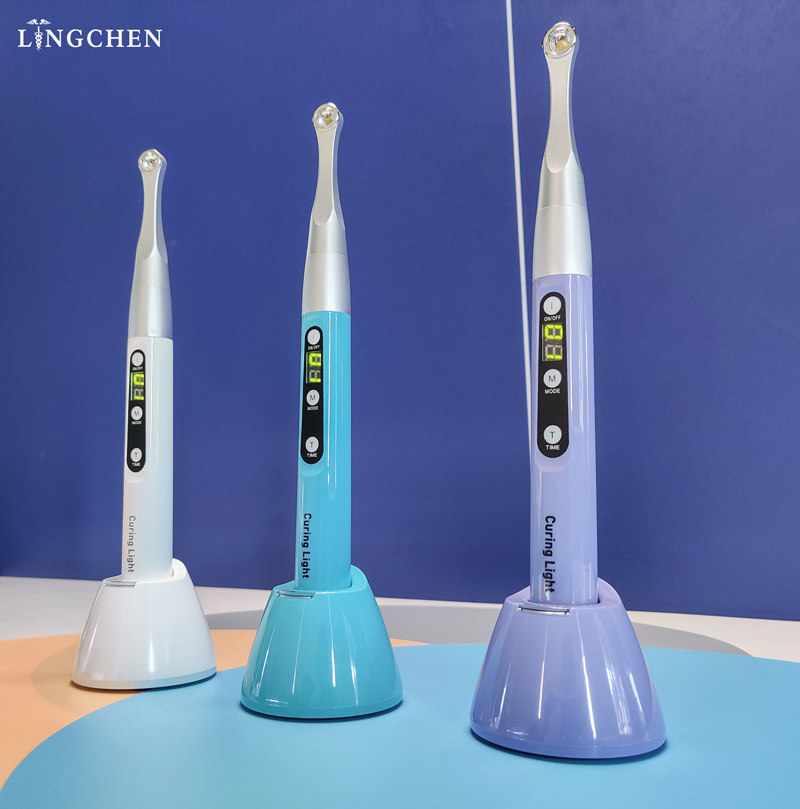

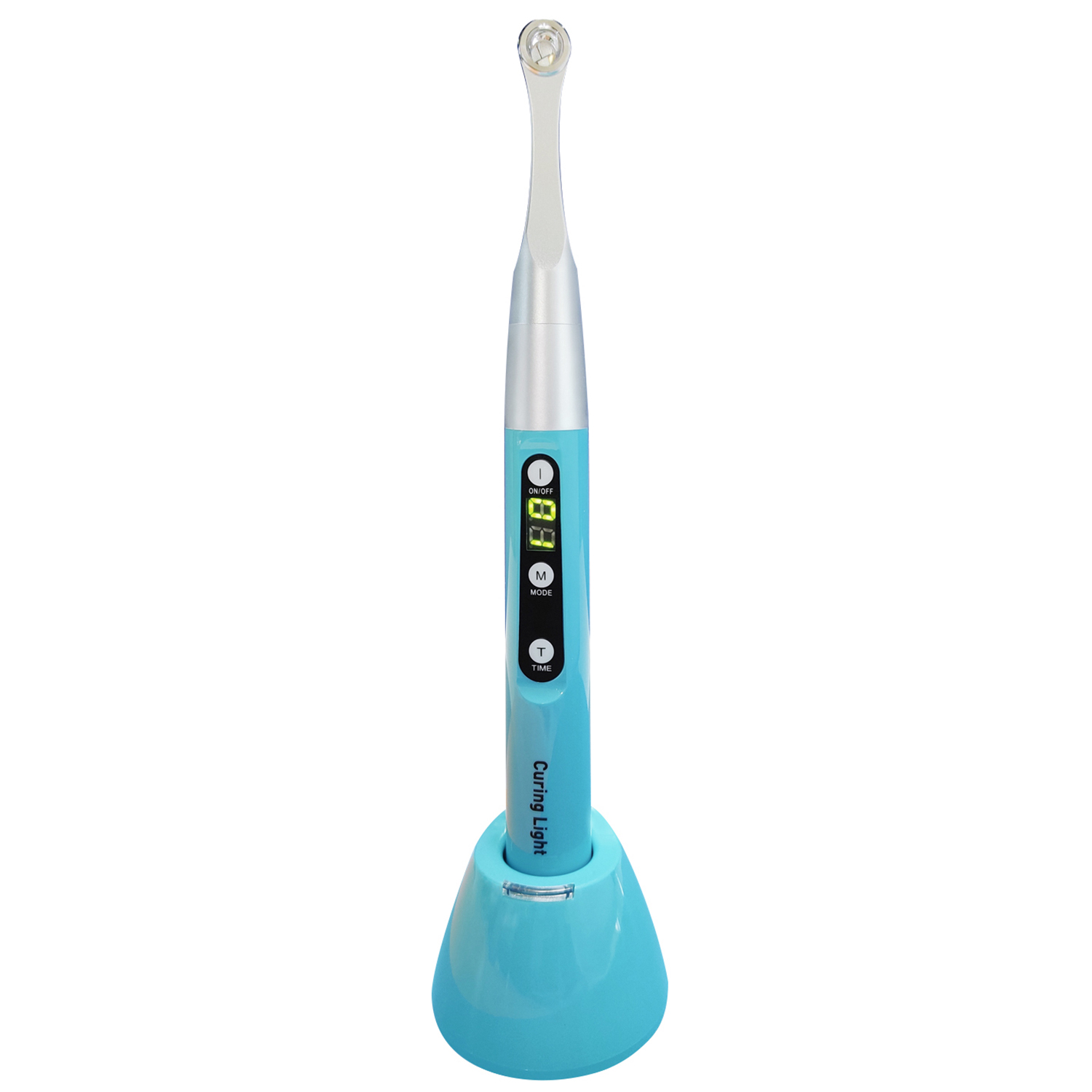

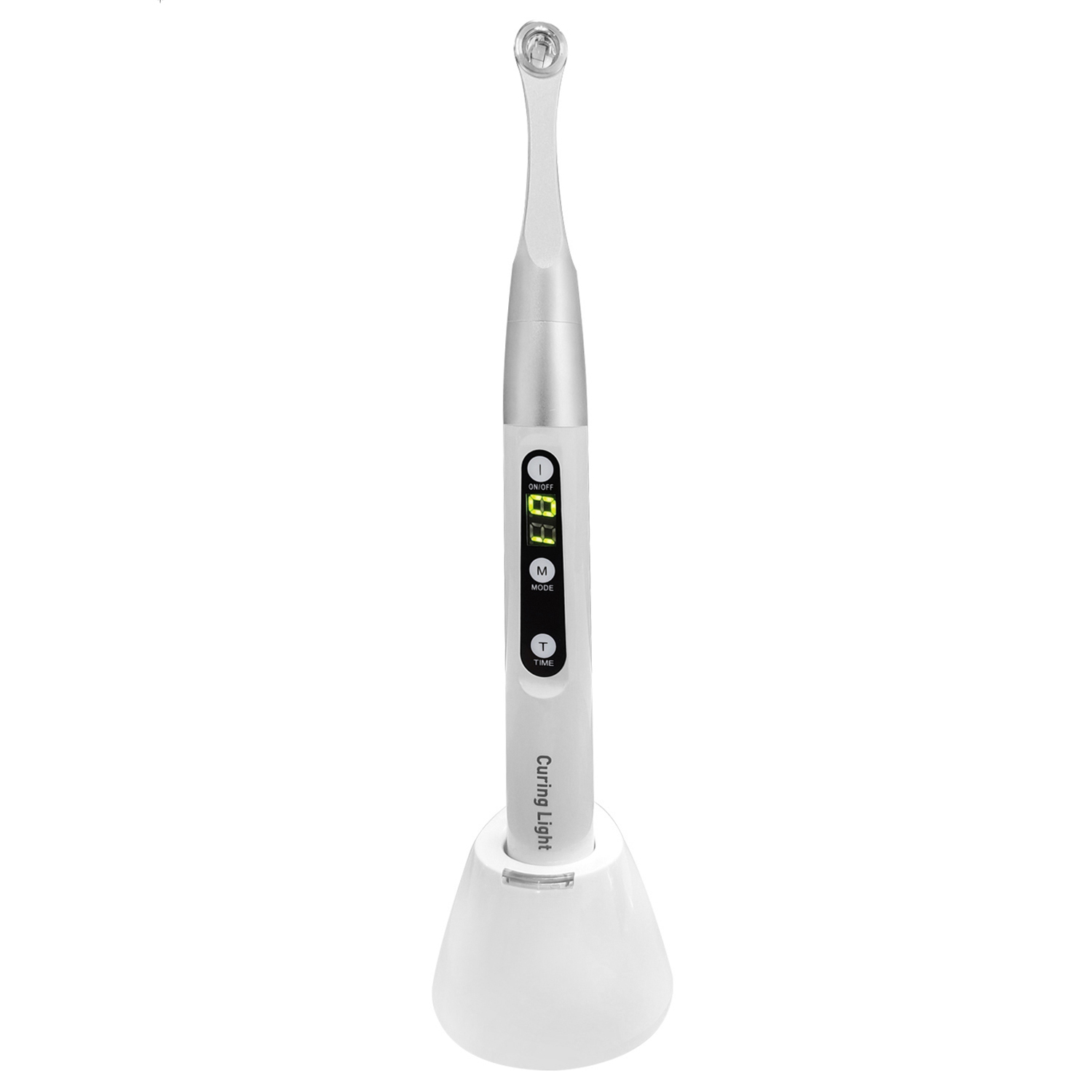

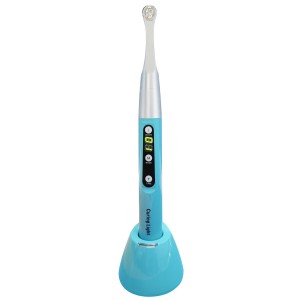

High Intensity 4 mdes Q7 Multi Wavelength Dental LED Curing Light
One qualified curing light helps you make perfect filling
Turbo: 2500mW/cm2
Full/Ramp/Pulse: 1500mW/cm2
Time: 1s, 3s, 5s, 10s, 15s, 20s
Color: Light blue/white/purple
Specifications:
| F.O.LIGHT GUIDE | 10mm(dia.) | |
| LIGHT WAVELENGTH | 385-515nm | |
| APPLICATION | General | |
| MODE | P1 | Turbo, 2300-2500mW.cm2 for 1, 3 seconds |
| P2 | Full, 1400-1600mW.cm2 for 5, 10, 15, 20 seconds | |
| P3 | Ramp, 1st five seconds from 1500mW.cm2 next 5, 10, 15, 20 seconds 1400-1600mW.cm2 | |
| P4 | Pulse, 1400-1600mW.cm2 for 5, 10, 15, 20 seconds(with 1 second blink in between) | |
Curing Light Mode Applications:
| P1 | 1s for pre-cure & 3s for fast cure |
| P2 | For general applications |
| P3 | First 0-5 seconds are ramped for general application |
| P4 | For more gentle processing, designed for patients sensitive to heat |
Depth of Cure:
| MODE | Intensity mW/cm2 | Time | Depth Measurements | ISO 4049 Depth Measurements(-50%) |
| P1 | 2300-2500 | 3 seconds | 4.5mm | 2.25mm |
| P2 | 1400-1600 | 10 seconds | 5.1mm | 2.55mm |
| P3 | 1400-1600 | 10 seconds | 4.9mm | 2.45mm |
| P4 | 1400-1600 | 10 seconds | 4.7mm | 2.35mm |
|
PRODUCT CHARACTER |
|
| 1. Produce water under the safest and cleanest condition; | 2. Stainless steel exterior and interior; |
| 3. Operate easily: Add water and plug in the socket, then power will be shut down automatically after completion. | 4. In small size, durable, light and handy: It's typically suitable for households, hotels, offices, traveling, medicine, chemistry purposes and so on. |
| 5.It also has a special function of sea water desalination, which is of survival necessity to those areas in shortage of fresh water. | |
|
Instructions |
|
| 1. Please read the manual carefully before operation. | 2. The distiller should work in dry and well-ventilated place. |
| 3. Please use 220V outlet which is prohibited to work for a variety of appliances to avoid overload. | 4. Please don't use broken power cord. |
| 5. Don't use distiller during water injection, cleaning or inoperation. | 6. Distiller can't be immersed in water. |
| 7. Keep the distiller far from children in case of scald. | 8. Do not remove the top cover until 10 minutes after finishing working in case of scald |
| 9. Do not use steel wool (brush) or other hard object to scrape stainless steel chamber so as not to damage the surface or to be more easily stained with dirt. | |
