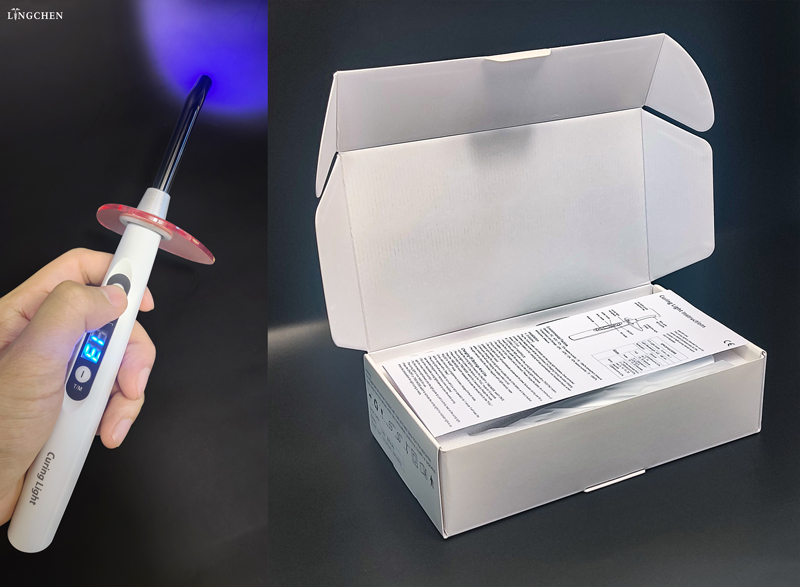

High Intensity 3 mdes Q5 Dental LED Curing Light
* 3 modes, 3 colors to choose, white, blue and purple
* The intensity reach to 1200-1800mW/cm2
* Battery, PCB and LED light - long time using life
Specifications:
| F.O.LIGHT GUIDE | 8mm(dia.) | |
| LIGHT WAVELENGTH | 440-480nm | |
| APPLICATION | General | |
| MODE | FULL | 1000-1200mW.cm2 for 5, 10, 15, 20 seconds |
| PULSE | 0-1200mW.cm2 for 5, 10, 15, 20 seconds | |
| RAMP | 1st five seconds from 0-1200mW.cm2 next 5, 10, 15, 20 seconds 1200mW.cm2 | |
Curing Light Mode Applications:
| FULL | For general applications |
| PULSE | For more gentle processing, designed for reducing the shrinkage of composite |
| RAMP | First 0-5 seconds are ramped for more gentle processing, designed for patients sensitive to heat |
Depth of Cure:
| MODE | Intensity mW/cm2 | Time | Depth Measurements | ISO 4049 Depth Measurements(-50%) |
| FULL | 1000-1200 | 10 seconds | 4.8mm | 2.40mm |
| PULSE | 0-1200 | 10 seconds | 4.2mm | 2.10mm |
| RAMP | 1000-1200 | 10 seconds | 4.6mm | 2.30mm |
|
PRODUCT CHARACTER |
|
| 1. Produce water under the safest and cleanest condition; | 2. Stainless steel exterior and interior; |
| 3. Operate easily: Add water and plug in the socket, then power will be shut down automatically after completion. | 4. In small size, durable, light and handy: It's typically suitable for households, hotels, offices, traveling, medicine, chemistry purposes and so on. |
| 5.It also has a special function of sea water desalination, which is of survival necessity to those areas in shortage of fresh water. | |
|
Instructions |
|
| 1. Please read the manual carefully before operation. | 2. The distiller should work in dry and well-ventilated place. |
| 3. Please use 220V outlet which is prohibited to work for a variety of appliances to avoid overload. | 4. Please don't use broken power cord. |
| 5. Don't use distiller during water injection, cleaning or inoperation. | 6. Distiller can't be immersed in water. |
| 7. Keep the distiller far from children in case of scald. | 8. Do not remove the top cover until 10 minutes after finishing working in case of scald |
| 9. Do not use steel wool (brush) or other hard object to scrape stainless steel chamber so as not to damage the surface or to be more easily stained with dirt. | |
