China Cheap Dental Bibs Used For – High-Frequency Clear Image Low Radiation Portable X Ray – Lingchen
China Cheap Dental Bibs Used For – High-Frequency Clear Image Low Radiation Portable X Ray – Lingchen Detail:
Advantages:
DC battery operation, functional low radiation to protect your patients and extend sensor life;
65KV, clear images;
AA Battery for ease of replacement;
Easy grip handle, small and simple to manipulate.
Exposure Time:
1. Choose between Child and Adult settings that correspond size and location to exposure time and angle.
2. Reference tooth to exposure time. (Referential value)
|
Tooth position Time(S) |
Back |
Middle |
Front |
|
|
Adult |
Upper Tooth |
1.5 |
1.1 |
0.7 |
|
Lower Tooth |
1.3 |
1 |
0.7 |
|
|
Child |
Upper Tooth |
0.8 |
0.6 |
0.5 |
|
Lower Tooth |
0.6 |
0.5 |
0.4 |
|
Note: When working with x-ray sensor as opposed to x-ray film decrease exposure by 50%.
|
Upper teeth |
8 7 6 5 4 3 2 1 |
1 2 3 4 5 6 7 8 |
|
Lower teeth |
8 7 6 5 4 3 2 1 |
1 2 3 4 5 6 7 8 |
Technical parameters:
| supply voltage | 100～240 VAC |
| Frequency | 50-60Hz |
| Power | 100 W |
| Exposure time | 0.2-6 s |
| X- ray tube high voltage | 65KV |
| X- ray tube current | 1mA |
| Filament frequency | 55 KHz |
| Excitation voltage frequency | 35 KHz |
| Leakage radiation | < 10 uGy/h |
| Total filtration | 2.3mmAl. |
| Focus to skin distance | 100mm +10mm |
| Limit diameter | 45mm + 5mm |
| Weight | 1.6kg |
| Volume | 17x13x12 cm |
Warning: Exposure infants and pregnant women should be performed with caution.

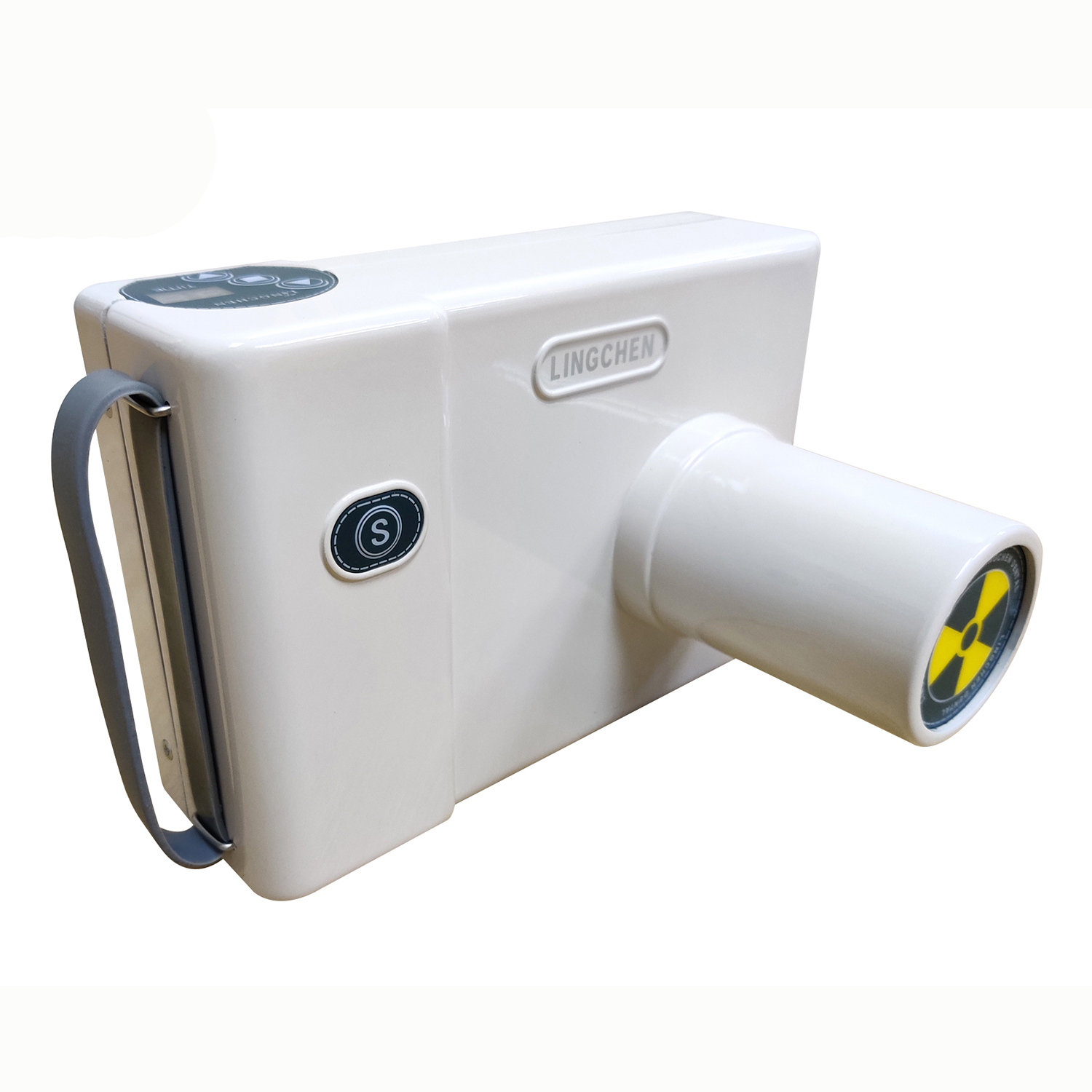

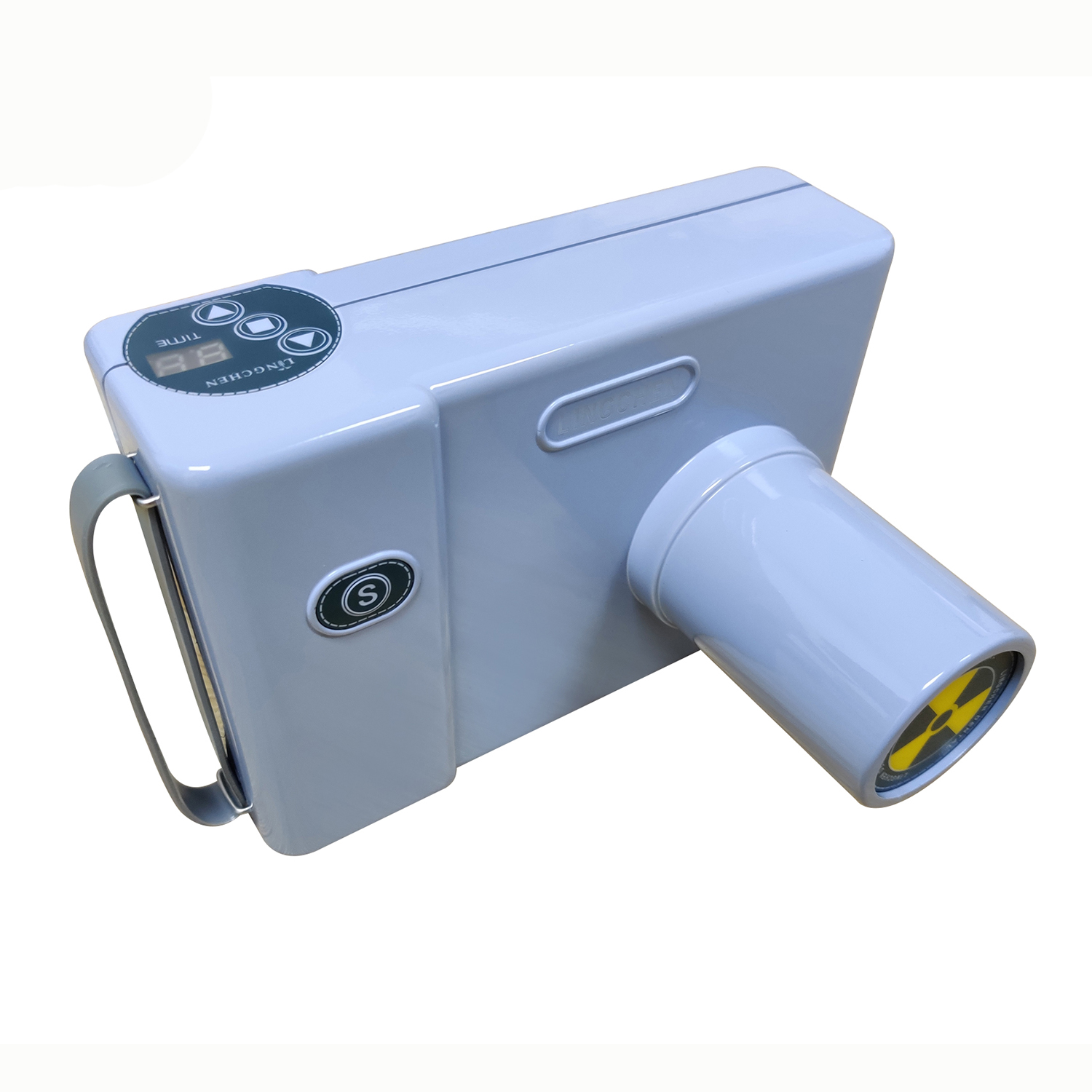

Product detail pictures:
